Spectra Precision LL300N Rotary Laser Level with HL450 Receiver
Array
Sales price $ 1850.00
Product Info
The Spectra Precision® LL300N Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by the accidental drop or tip over... and lower repair costs over the life of the product.
The LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable NiMH battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work while maintaining accuracy in the cross-slope.
Features
Increases productivity with fast setups, fewer mechanical parts, and automatic self-leveling
Maintains performance even in rainy, dusty and other harsh job site and weather conditions - IP66 environmental rating
Durable design reduces downtime due to drops and tripod tip-overs
Minimizes power costs, increases reliability with choice of rechargeable or alkaline batteries
Increases flexibility with remote control slope option
Comes standard with HL450 digital readout receiver and other configurations are available
Kits available with system case which contain laser, receiver, tripod and grade rod
Includes:
LL300N
HL450 Receiver
C45 Clamp
Alkaline Batteries
5289-0025 Carry Case
Manuals
Specifications
LL300N Laser Specifications
Laser Source
650 nm, Class 2, <3,4mW
Laser Accuracy
±3/32 in at 100 ft (±2.2 mm at 30 m)
Operating Range
1,650 ft (500 m) diameter
Self-leveling Range
±5 degrees
Compensation Method
Electronic self-leveling
Drop Height on Concrete Performance
3 ft (1 m)
Single Axis Manual Slope Mode
Yes (w/self-leveling mode on the second axis), with optional RC601 remote control
Out-of-level Warning
Rotor stops, red out-of-level HI-LED flashes

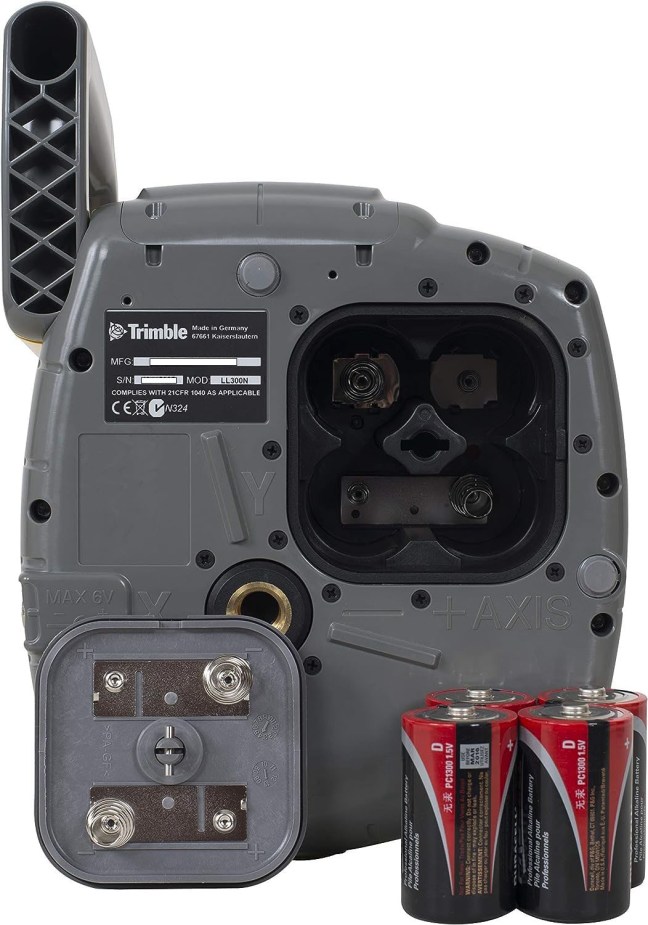

Power Source
4 x D-cell NiMH or alkaline batteries
Battery Life
Rechargeable - 45 hours, Alkaline - 90 hours
Battery Status LED
Flashing red LED
Rotation Speed
600 RPM
Tripod Mount (Horizontal and Vertical)
5/8” x 11
Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature
-4 °F to 158 °F (-20 °C to 70 °C)
Water Resistant
Yes, IP66
Size
10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
Weight
5.9 lbs (2,7 kg)
Warranty
5 Years
HL450 Receiver Specifications
Digital Readout Units
mm, ft, in, frac
Reception Height
4 inches (102 mm)
Three On-grade Sensitivities
Fine ~1/16 in (1 mm) Medium ~1/4 in (5 mm) Calibration Mode ~1/64 in (0.1 mm)
